UNIQUE PRINTED STRETCHABLE ELECTRONICS
Sensor matrix can be tailored to different form factors and size. It is possible to utilize same measurement system in most customer products and equipment fast with only moderate customization efforts.
FORCIOT® system measures accurately force, weight, pressure and balance in real-time or the system can be utilized e.g. as an HMI touch controller as well in elastic environments. Forciot offers the system for the manufacturers to be integrated into their products or equipment to provide valuable information.
Force measurement hardware and algorithm software for the force measurement
Connected application to process, store and view the data and;
Product integration service for customization and technical support
HOW IT WORKS?
STRETCHABLE SENSOR MATRIX & ELECTRONICS
Force measurement hardware and algorithm software for the force measurement. ↓
STRETCHABLE SENSOR MATRIX & ELECTRONICS
Force measurement system:
The force measurement system measures dynamic force and pressure distribution, processes the measured raw data with specific advanced algorithms and sends the resulting real-time data to the connected application. The measurement system itself consists of two main elements: a force sensor matrix and reading electronics with embedded software. Both of these are integrated into the customer’s product or equipment.
Additional on-board sensors like temperature and motion sensors provide data for those algorithms, as well as for power management purposes. Energy management can be handled in various alternative ways, depending on the customer application: with external power supply, with replaceable batteries or with rechargeable batteries by using either wireless or USB charging. Additionally, energy harvesting can be designed as a parallel option for limited applications.

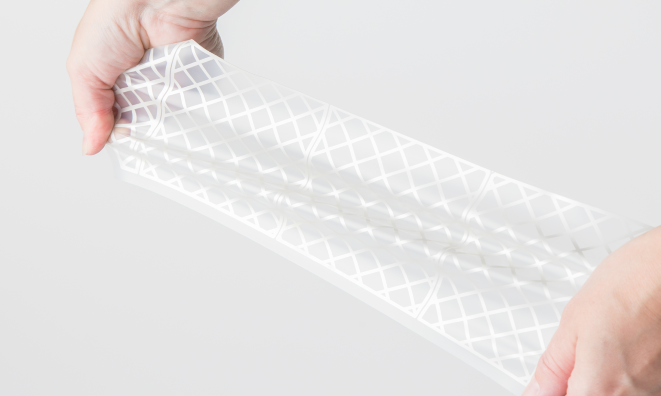

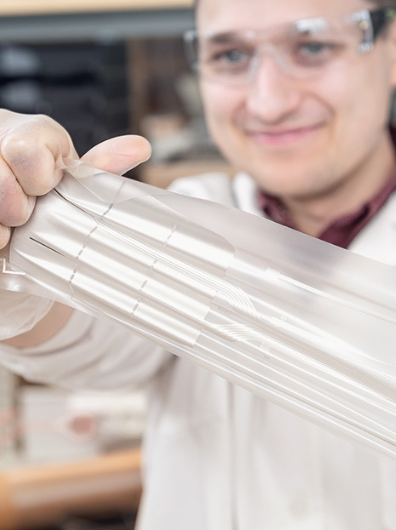

The unique printed stretchable sensor matrix:
The sensor matrix is formed from very thin layers of stretchable and conformable materials each having different and optimized electromechanical characteristics. The core of the force sensor matrix technology is based on printing conductive material into thin stretchable sheets. Because of the thinness and flexibility, sensors can be integrated into demanding elastic environments. Parameters which can be customized are: the amount of sensors, the area and thickness of sensors, sensor placements, applied force scale for sensors and non-conductive surface materials. These parameters, as well as electrical and material specific aging parameters, are used in a specific compensation and self-calibrating algorithm to ensure reliable and accurate results in different conditions, throughout the entire lifetime of the product.
Reading electronics with embedded algorithm software:
Each sensor is individually connected to the electronics module through a connector. The module reads analogue values from sensors, converts those to digital form, applies self-calibration and compensation algorithms to individual electrode values and sends the data forward to the connected application – either by wireless or wired connection. Machine Learning technologies are also being applied in algorithm development.
The application has three main functions which all can be tailored based on the need; data handling, user interface and device management. The application first collects force measurement data from the sensor hardware and handles data storage either locally or through an internet connection to the cloud service. This is called as IoT gateway functionality. Data interfaces are designed in such a way that those can be easily utilized in customer specific or 3rd party cloud and mobile applications. The platform running the application can be a mobile phone, tablet, car computer or customer specific processing unit.
The user interface can visualize both real-time and stored measurement data for the user as well as combining other available and relevant data sources (e.g. location) with the data. Additionally user interface can be used for controlling and flexibly configuring measurement system parameters. Each sensor node can be individually configured and reprogrammed remotely through the application. This functionality is called device management.
FORCIOT Integration service to B2B customers:
Our technology is integrated to various products that people use every day. Those products are manufactured by our business-to-business customers.
We make things easy for our customers. As part of the integration service we offer our team’s expert help for our customers and manufacturers in case it is needed. Customization is a key element of our integration service. Our service includes designing and integrating the measurement system and related IOT solution into the customer’s products and equipment. As part of the integration service we also assist customers in selecting suitable materials and electronics depending on their needs.
Want to use Forciot technology in your own development or integrated into your product?
